Miura P400

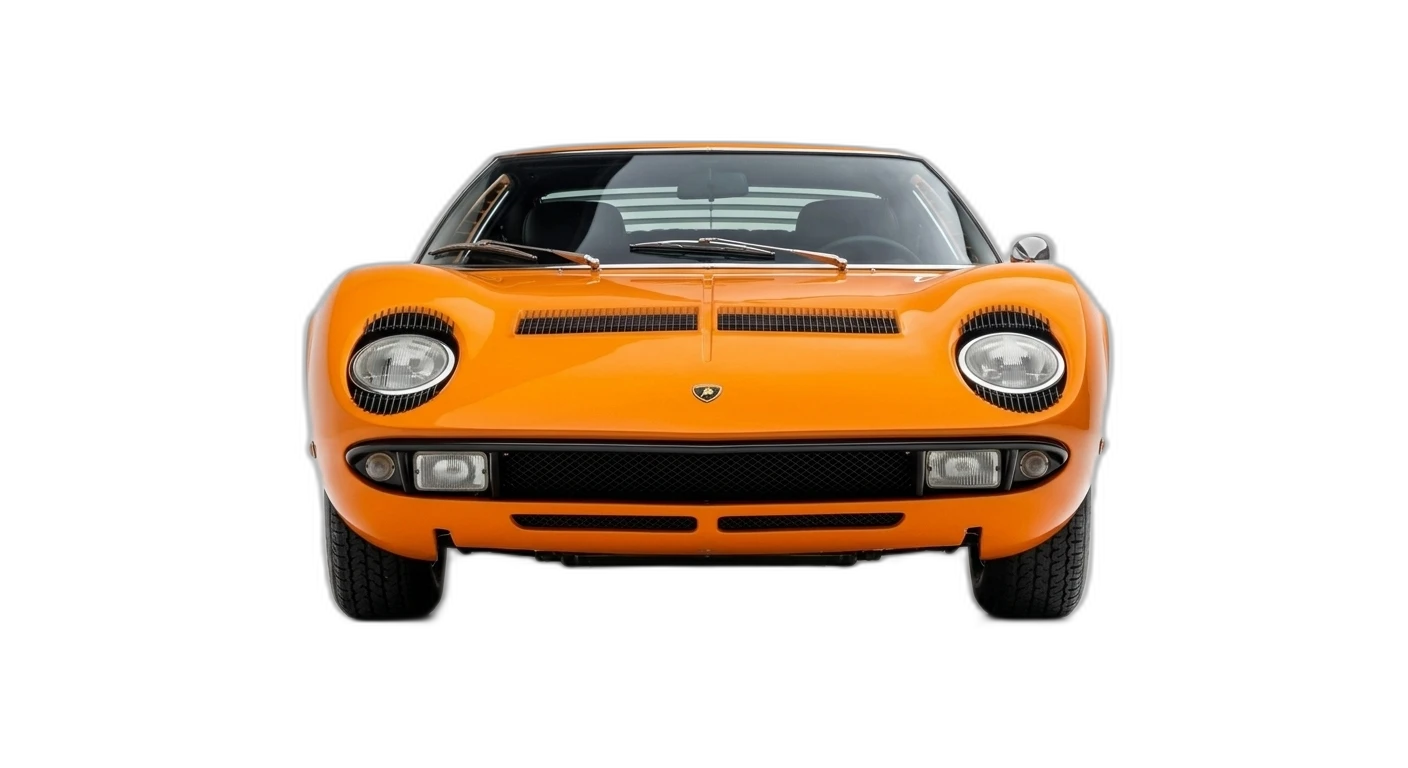

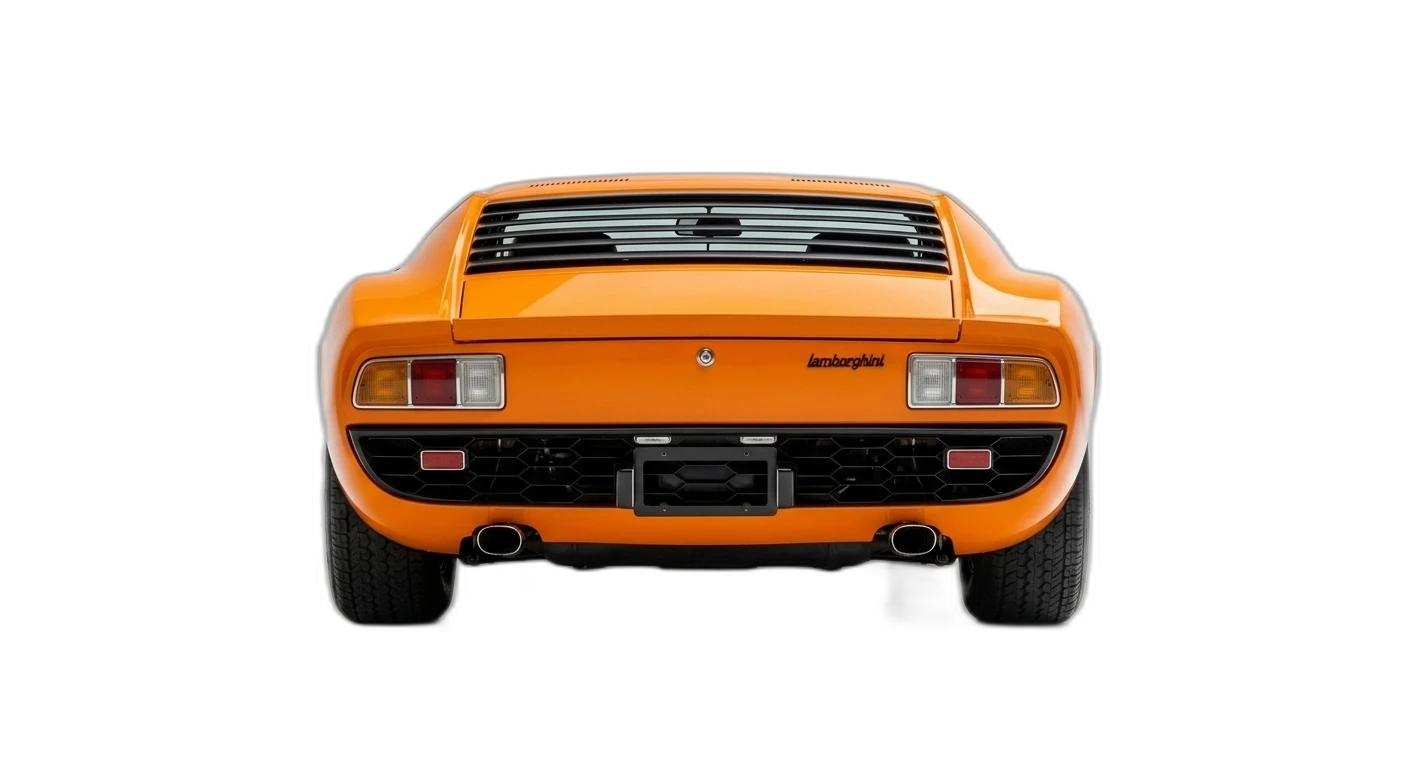

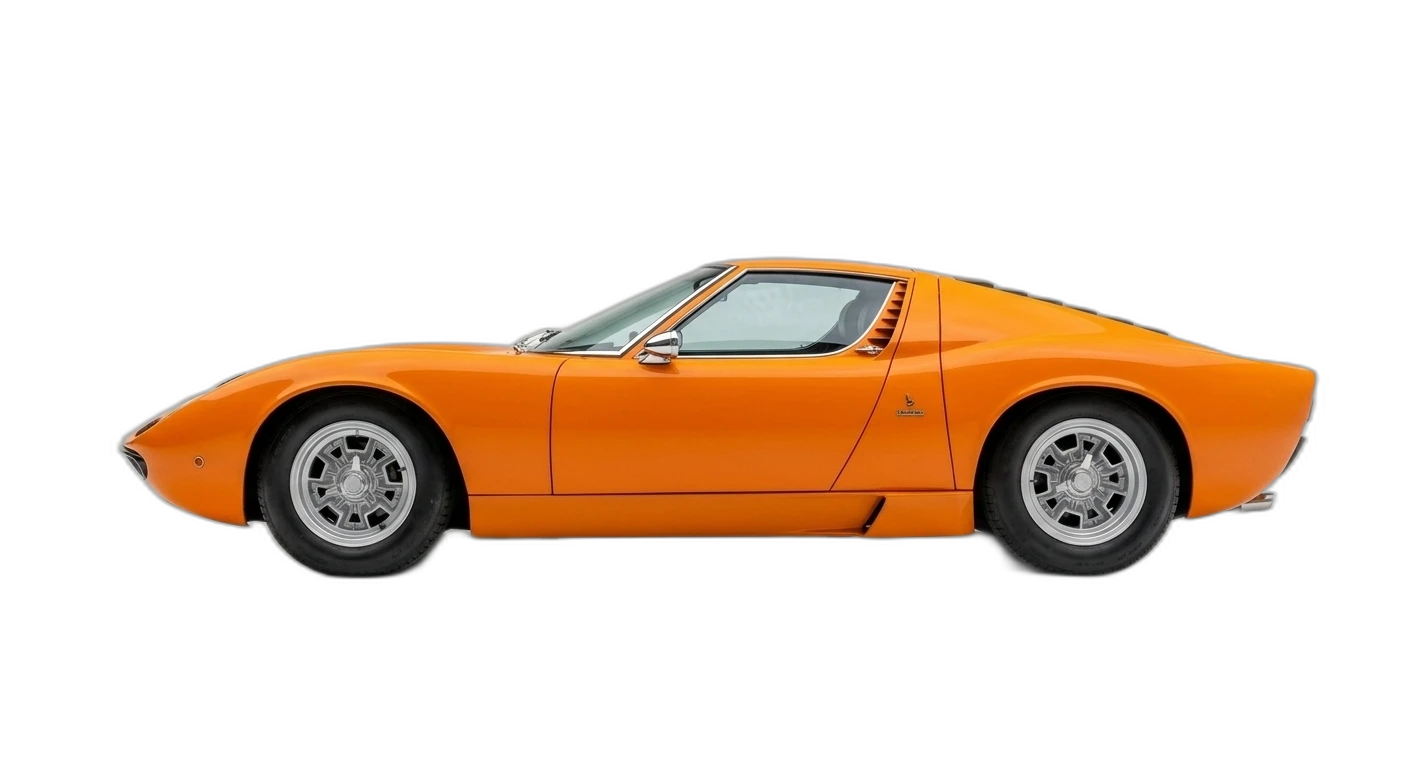

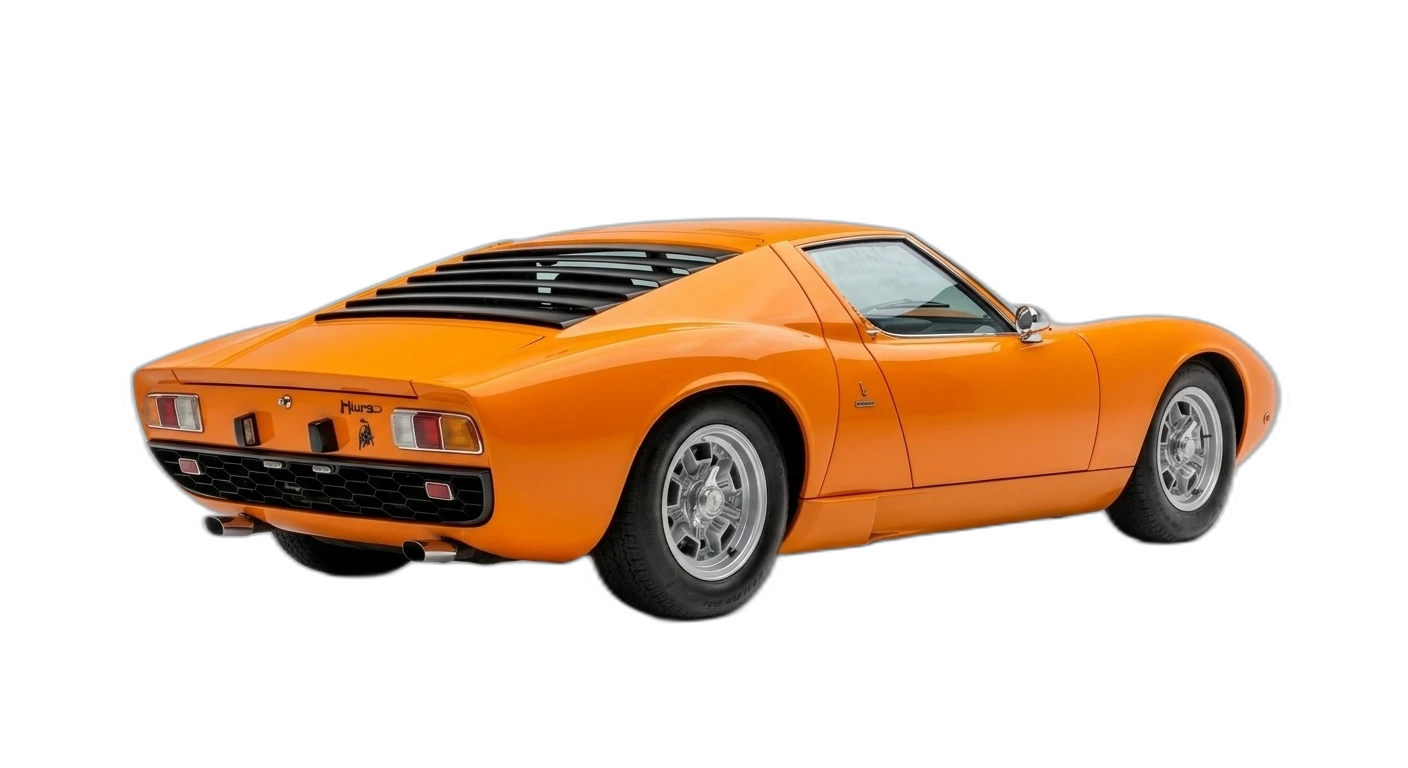

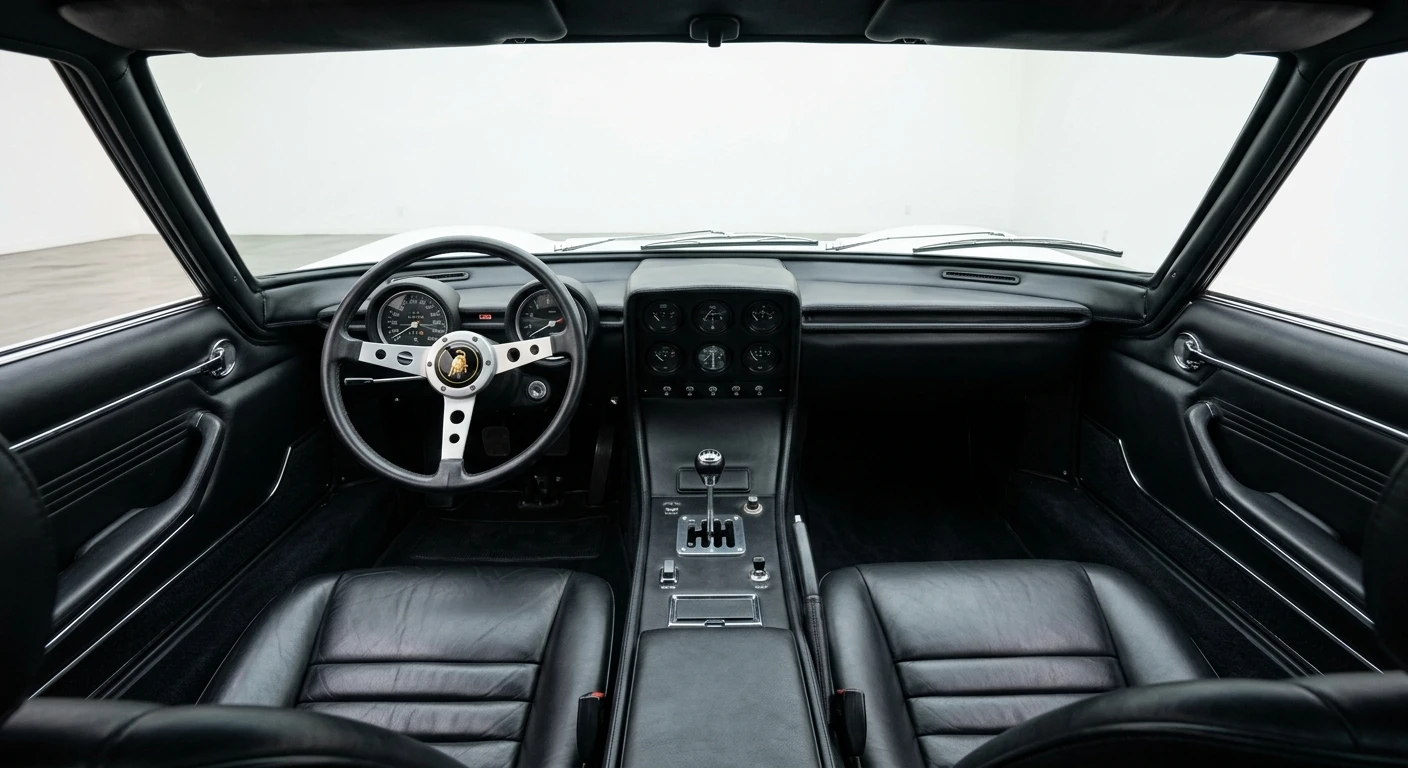

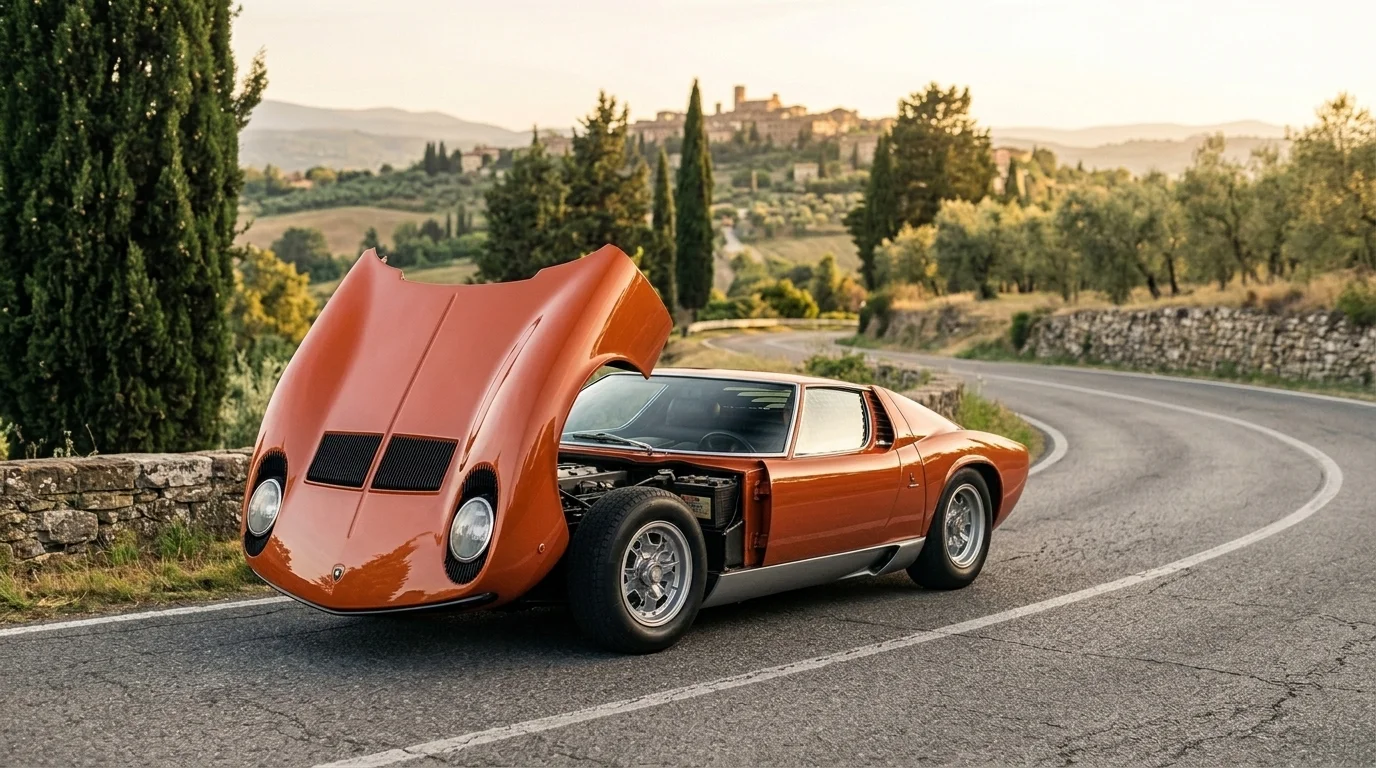

Lamborghini Miura P400 1966 - Front 3/4 viewLamborghini Miura P400 1966 - Front viewLamborghini Miura P400 1966 - Side viewLamborghini Miura P400 1966 - Rear 3/4 viewLamborghini Miura P400 1966 - Rear viewLamborghini Miura P400 1966 - Dashboard viewLamborghini Miura P400 1966 - Interior viewLamborghini Miura P400 1966 - Detail viewLamborghini Miura P400 1966 - Engine Bay viewLamborghini Miura P400 1966 - Gauges viewLamborghini Miura P400 1966 - Trunk view
Front 3/4
Engineering first

The car that invented the mid-engine supercar. Marcello Gandini was 27 years old when he designed it at Bertone. The transversely mounted V12 behind the driver created a template that every supercar since has followed.

History

The Miura began as an unauthorized side project by three young Lamborghini engineers: Gian Paolo Dallara, Paolo Stanzani, and Bob Wallace. They designed the chassis in their spare time, presenting the bare platform at the 1965 Turin Motor Show. Ferruccio Lamborghini reluctantly approved the project.

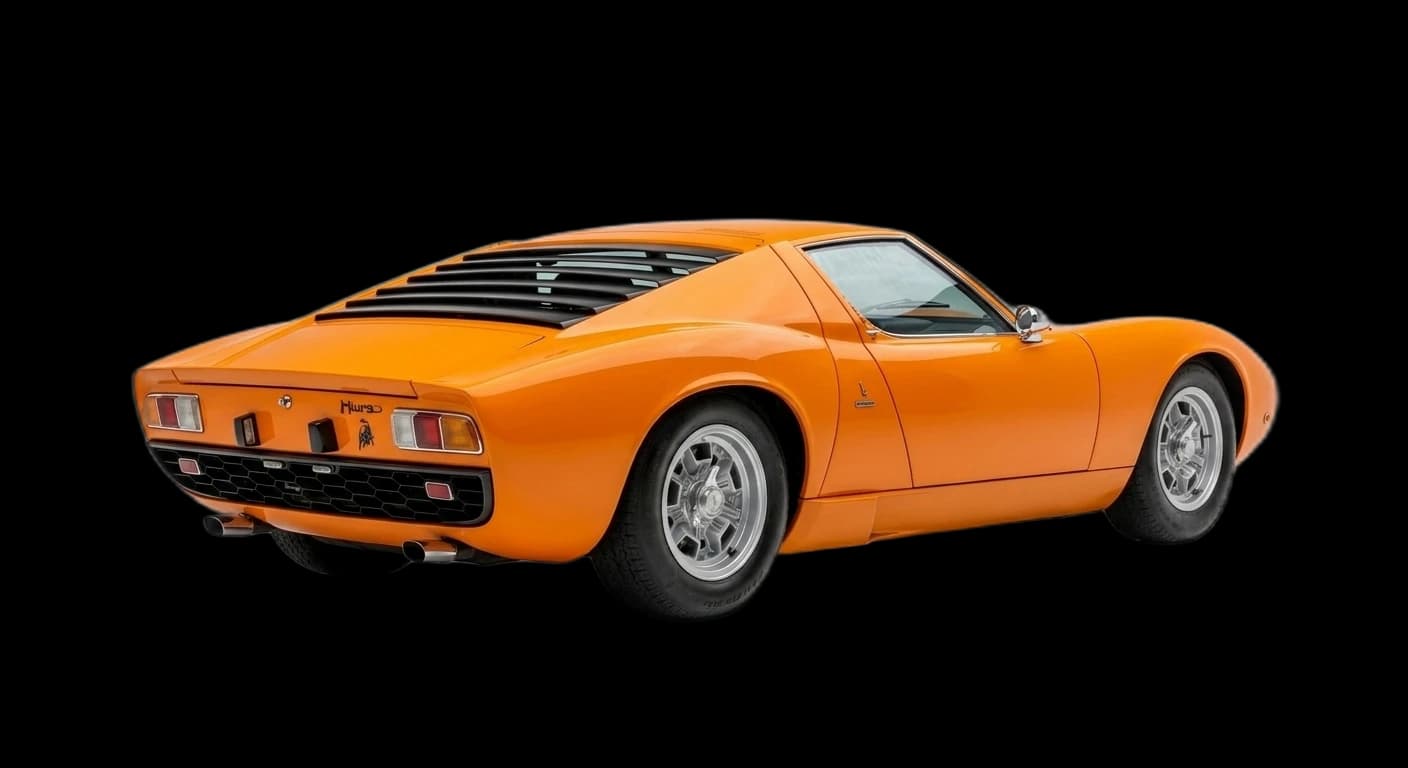

Marcello Gandini, just 27 years old and recently hired by Bertone, drew the body. The result was the most beautiful car of the 1960s: a low, sensuous shape with eyelash headlights, a shark-nose front, and muscular rear haunches that hinted at the V12 mounted transversely behind the cockpit.

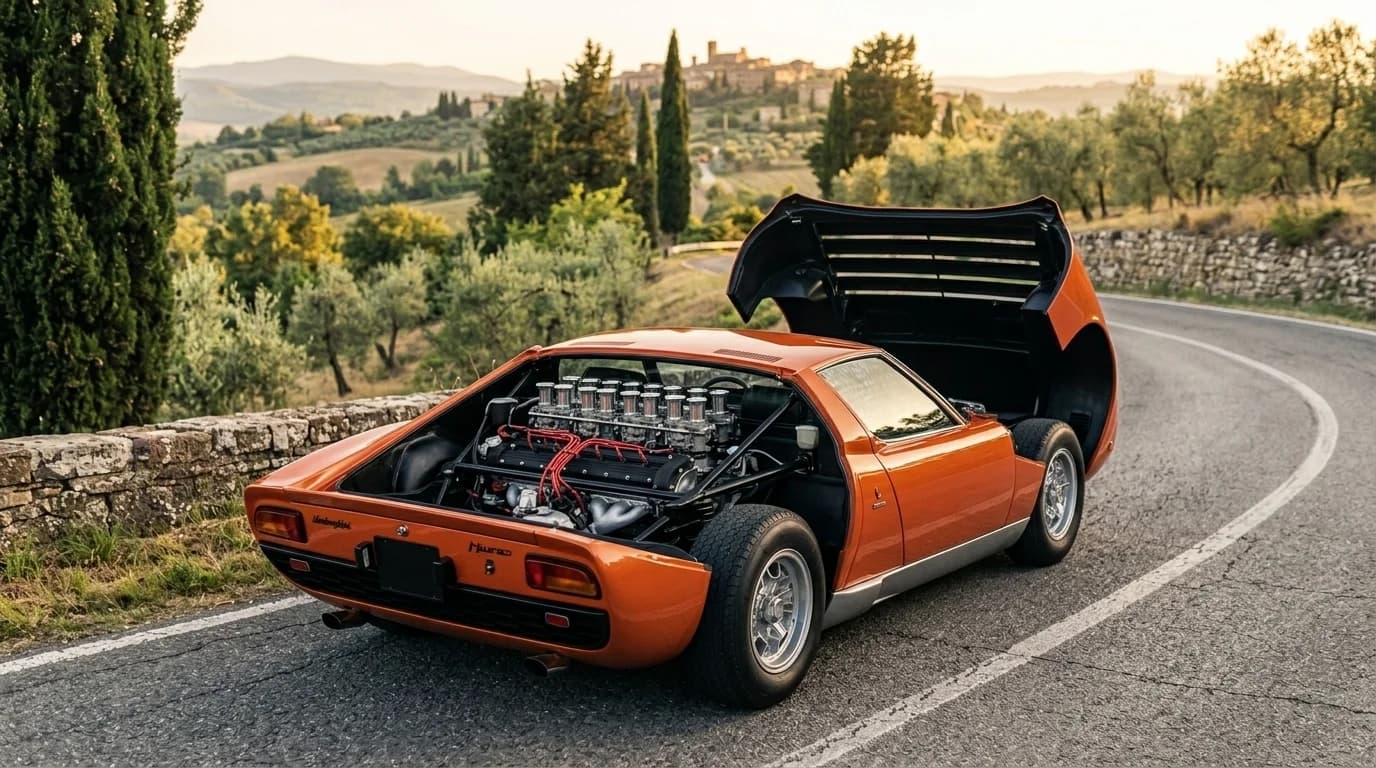

The engineering was as radical as the design. The V12 sat transversely behind the driver, sharing its oil with the gearbox in a compact package that allowed an impossibly low body. The chassis was a sheet-steel monocoque with the engine as a stressed member.

The Miura redefined what a sports car could be. Before 1966, high-performance cars were front-engined. After the Miura, the mid-engine layout became the default for any car claiming supercar status. It influenced the Ferrari Dino, the Lamborghini Countach that replaced it, and every mid-engine exotic that followed.

764 Miuras were built across P400, P400 S, and P400 SV variants. Today they command $1.5 million to $4 million depending on specification.

Timeline

1965Presenting the bare platform at the 1965 Turin Motor Show
1966Debuts at the Geneva Motor Show, inventing the mid-engine supercar layout
1969Opening scene of The Italian Job: a Miura drives through the Alps before being destroyed in a tunnel
1973Production ends

Production & Heritage

Production Total764
DesignerMarcello Gandini
Production Period1966-1973
Estimated Value$1.5M-$4.0M

Value estimates are editorial assessments based on recent auction results and market trends.

Technical Specifications

Engine4.0L V12 (P400)
Power350 hp @ 7,000 rpm
Torque370 Nm
0-60 mph6.7 sec
Top Speed280 km/h

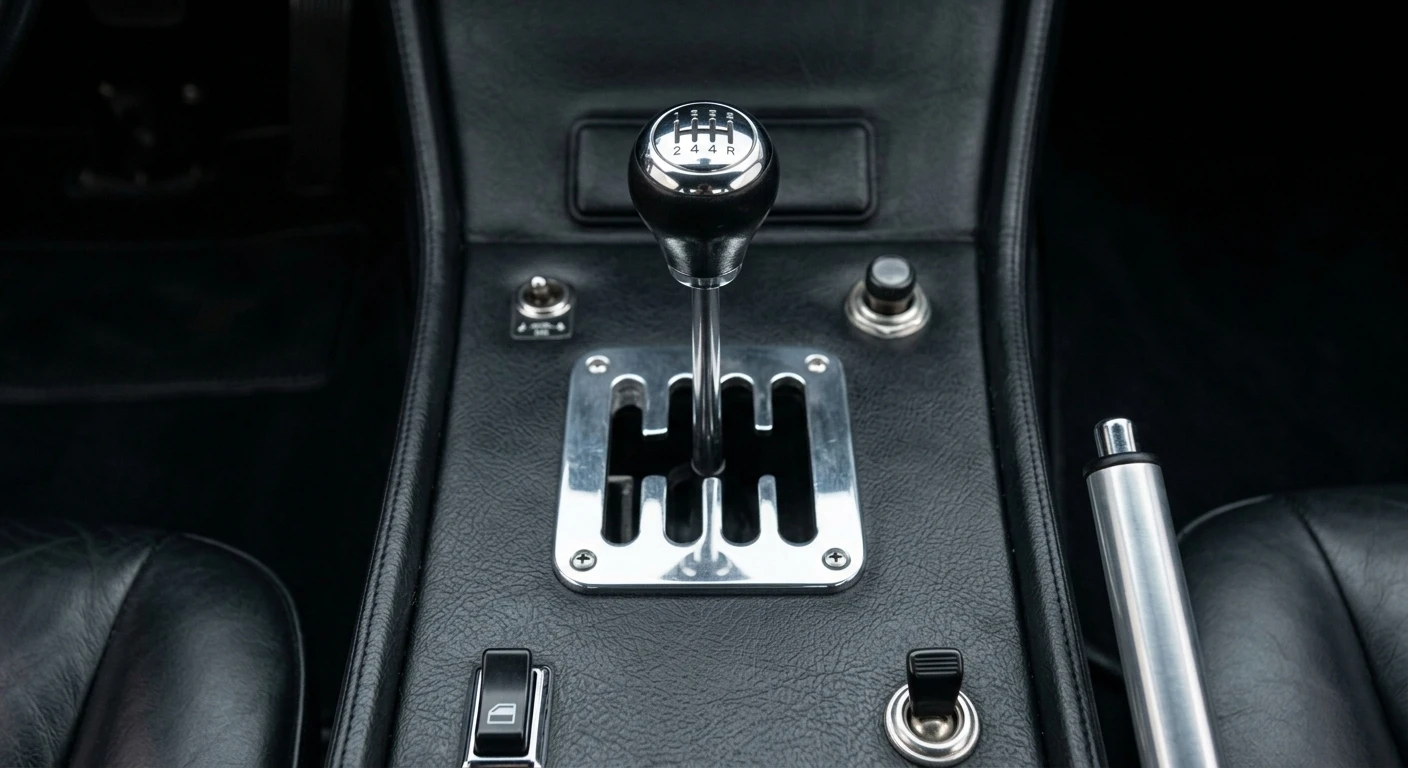

Transmission5-speed manual
DrivetrainRWD
Weight1,180 kg
Drag CoefficientCd 0.39
BodySheet steel platform chassis, steel body by Bertone

Engine Details

Engine CodeTP400 transverse V12 3929cc
Displacement3.9L (3,929 cc)
Bore x Stroke82 x 62 mm
Compression9.5
Fuel System4x Weber 40 IDL3C carburetors

Performance

0-100 km/h6.7 sec
0-60 mph6.7 sec
Top Speed280 km/h
Weight-to-Power3.4 kg/hp

Dimensions

Length4,370 mm
Width1,780 mm
Height1,100 mm
Wheelbase2,504 mm

Chassis & Suspension

Front SuspensionDouble wishbone, coil springs, anti-roll bar
Rear SuspensionDouble wishbone, coil springs, anti-roll bar
Front BrakesDisc (Girling)
Rear BrakesDisc (Girling)
SteeringWorm and sector, ZF
Tires205/70 VR15

Capacity

Fuel Tank90 L
Trunk VolumeN/A L
Doors2
Seats2
