550 Spyder

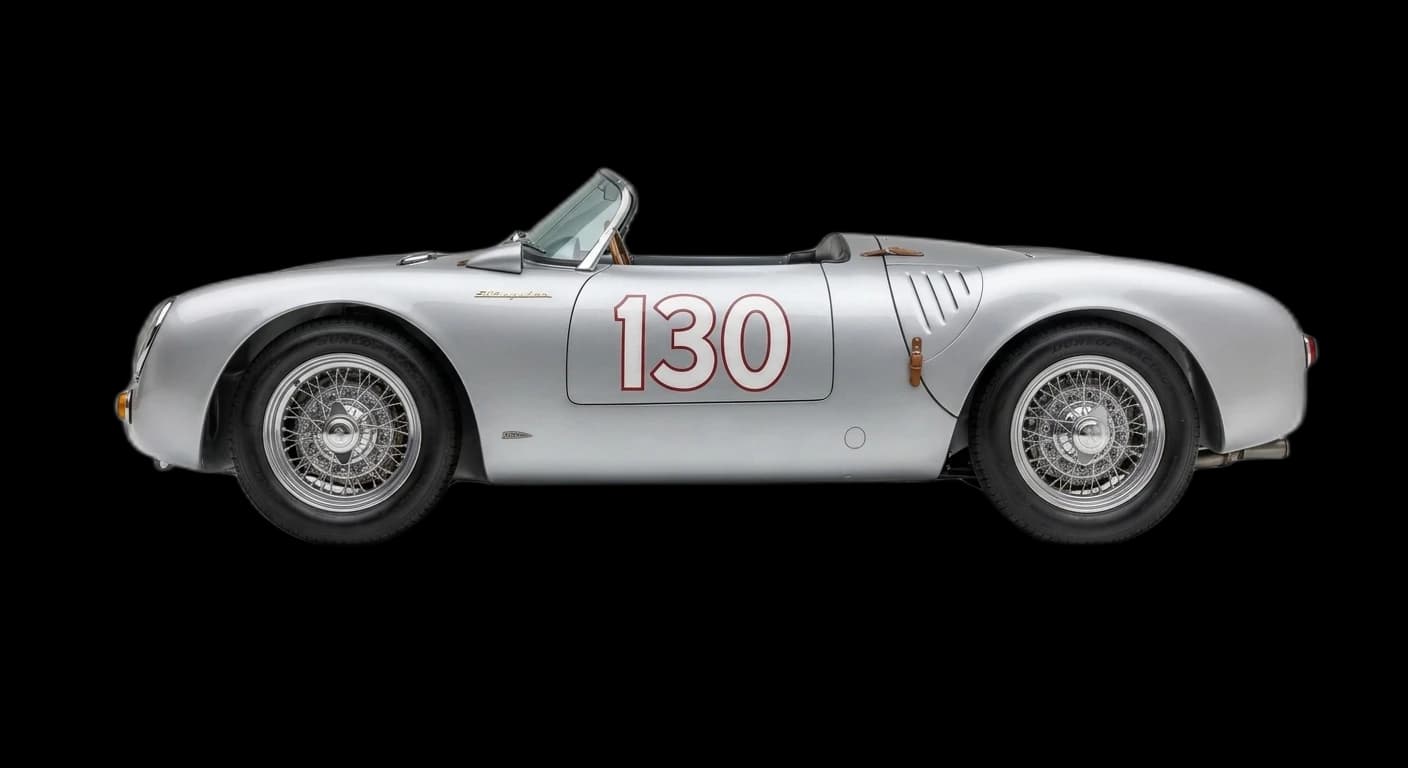

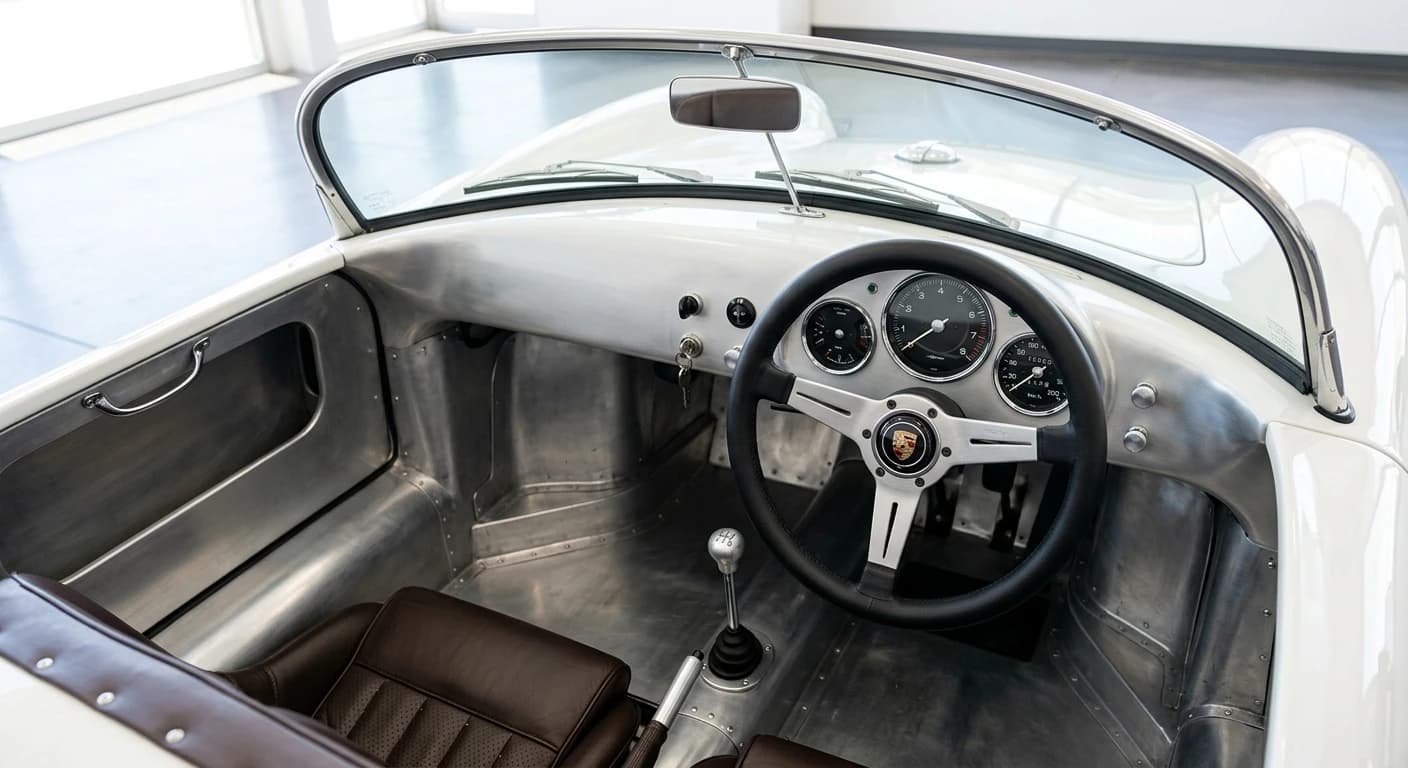

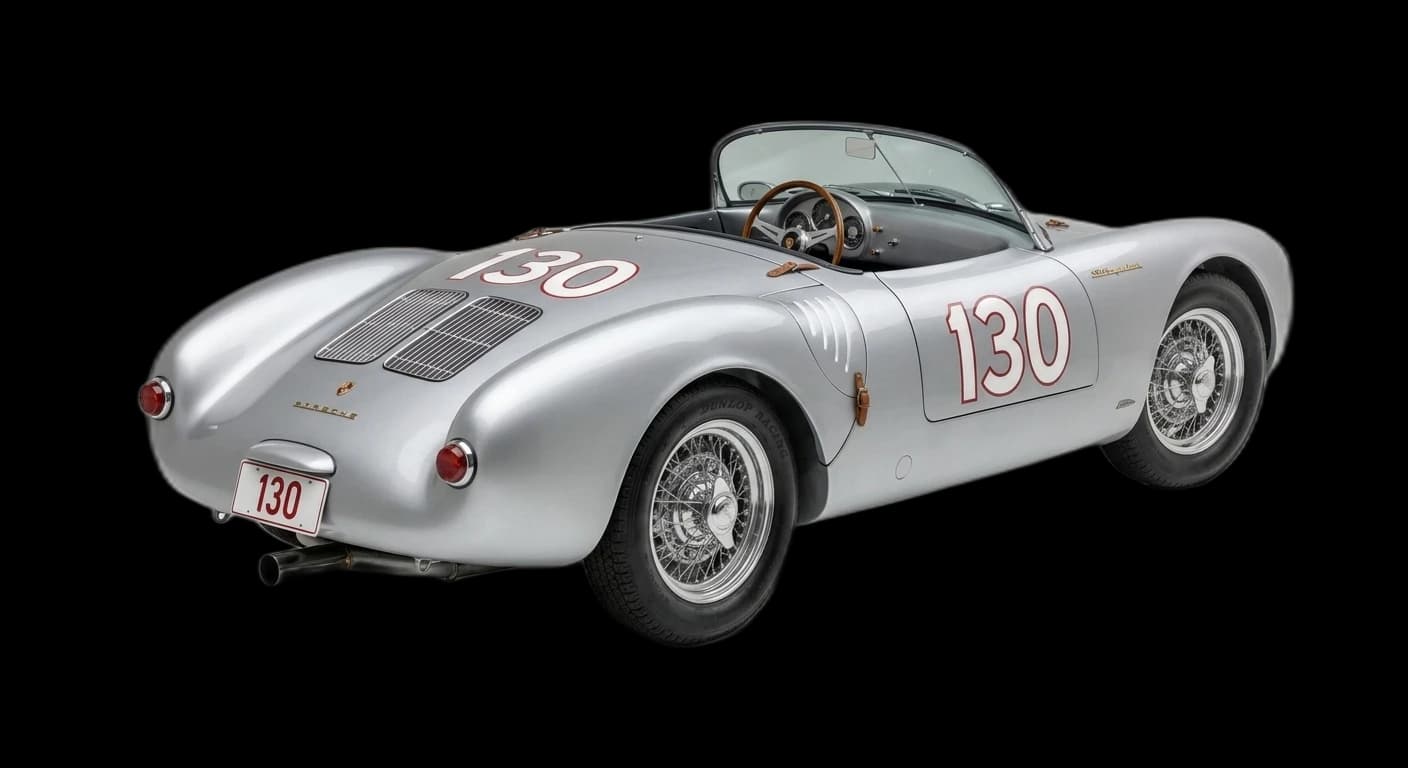

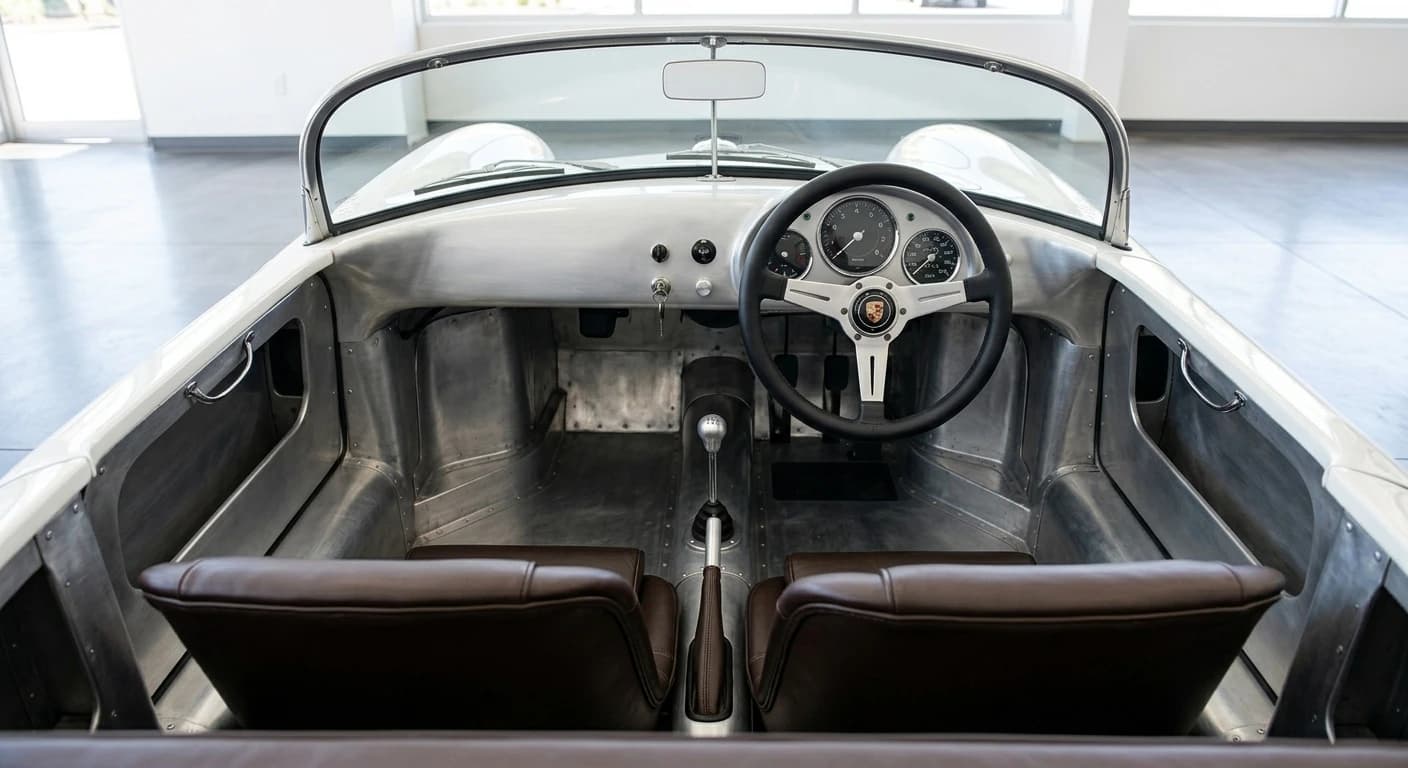

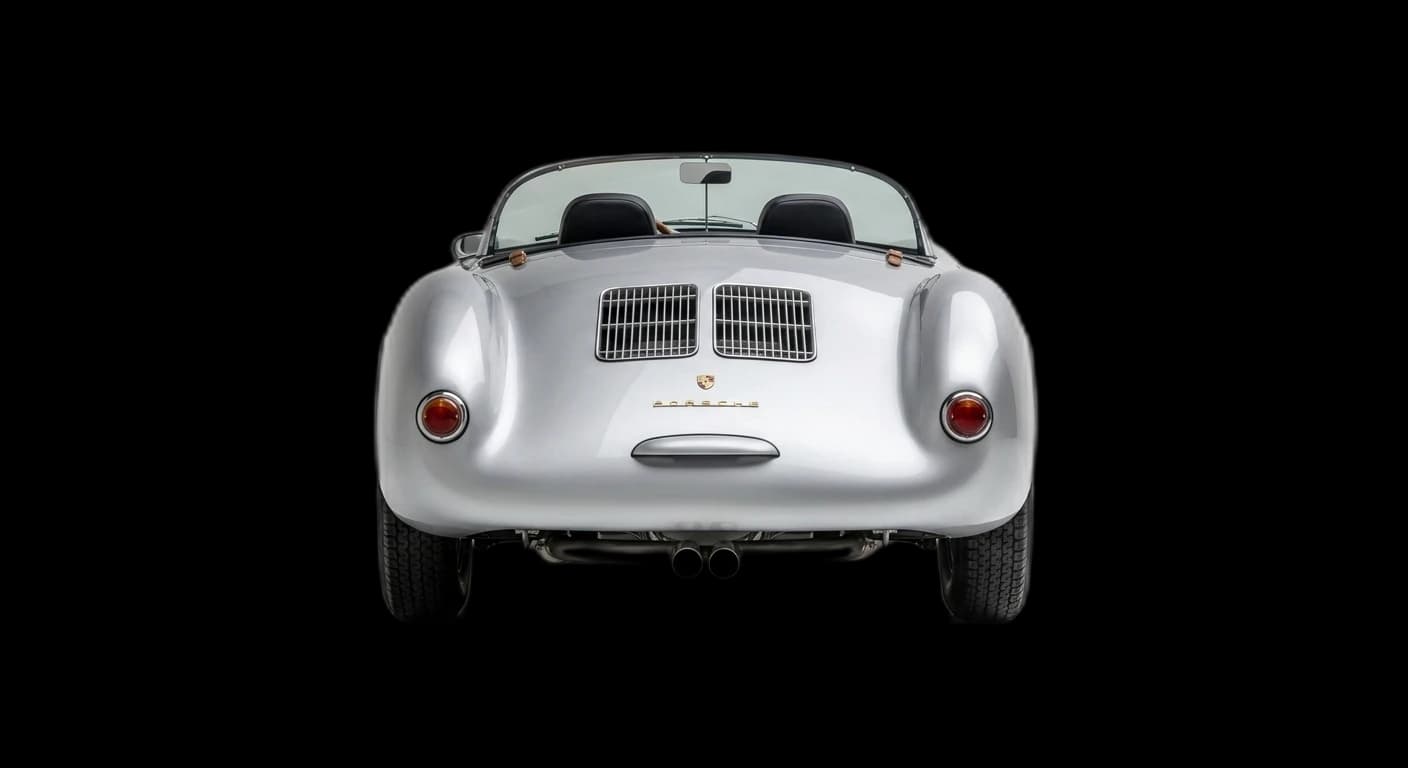

Porsche 550 Spyder 1953 - Front 3/4 viewPorsche 550 Spyder 1953 - Front viewPorsche 550 Spyder 1953 - Side viewPorsche 550 Spyder 1953 - Rear 3/4 viewPorsche 550 Spyder 1953 - Rear viewPorsche 550 Spyder 1953 - Dashboard viewPorsche 550 Spyder 1953 - Interior viewPorsche 550 Spyder 1953 - Detail view
Front 3/4
What makes it iconic

James Dean's last car. The 'Giant Killer' that beat V8 and V12 machines with just 1.5 liters and 550 kg. 90 built. Dean named his 'Little Bastard' and died in it on September 30, 1955, at the intersection of Routes 466 and 41 near Cholame, California.

History

Ernst Fuhrmann designed the Type 547 four-cam engine specifically for the 550. Despite displacing just 1.5 liters, the air-cooled flat-four produced 110 hp through four overhead camshafts driven by a complex shaft-and-bevel-gear system. The engine was a jewel of engineering that revved to 7,800 rpm.

The tubular space frame chassis weighed just 550 kg with the aluminum body. This gave the 550 a power-to-weight ratio that embarrassed Ferraris and Maseratis with three times the displacement.

At the 1954 Carrera Panamericana, Hans Herrmann finished third overall in a 550, beating every car except two larger Ferrari prototypes. The result inspired Porsche to name their high-performance road cars 'Carrera.'

James Dean purchased a new 550 Spyder in September 1955, naming it 'Little Bastard.' On September 30, while driving to a race at Salinas, he was killed in a collision at an intersection near Cholame. He was 24 years old.

90 550 Spyders were built. Today they command $4 million to $6 million at auction. The car's legacy is inseparable from Dean's death, which gave it a cultural weight that transcends motorsport.

Timeline

1953Production begins
1954At the 1954 Carrera Panamericana
1955Dean purchased a new 550 Spyder in September 1955, naming it 'Little Bastard.' On September 30,...
1956Production ends

Production & Heritage

Production Total90
DesignerErnst Fuhrmann
Production Period1953-1956
Estimated Value$4.0M-$6.0M

Value estimates are editorial assessments based on recent auction results and market trends.

Technical Specifications

Engine1.5L Flat-4 (Type 547)
Power110 hp @ 6,200 rpm
Torque132 Nm
0-60 mph7 sec
Top Speed220 km/h
Transmission4-speed manual
DrivetrainRWD
Weight550 kg
Drag CoefficientCd 0.36
BodyTubular steel space frame, aluminum body panels

Engine Details

Engine CodeType 547 Fuhrmann Flat-4 (1498cc)
Displacement1.5L (1,498 cc)
Bore x Stroke85 x 66 mm
Compression9
Fuel SystemTwin Solex PJJ downdraft carburetors

Performance

0-100 km/h7.5 sec
0-60 mph7 sec
Top Speed220 km/h
Weight-to-Power5.0 kg/hp

Dimensions

Length3,700 mm
Width1,520 mm
Height990 mm
Wheelbase2,100 mm

Chassis & Suspension

Front SuspensionIndependent, trailing arms, transverse torsion bars
Rear SuspensionIndependent, swing axles, transverse torsion bars
Front BrakesDrums, Al-Fin aluminum alloy
Rear BrakesDrums, Al-Fin aluminum alloy
SteeringWorm and roller
Tires5.25 x 16 Dunlop

Capacity

Fuel Tank80 L
Trunk VolumeN/A L
Doors0 (open cockpit with tonneau cover)
Seats2
